Name: John Deere 260 Backhoe Attachment SOLD SOLD SOLD
SKU: 51170
Price: 5995.00 CAD
Availability: InStock

John Deere 260 Backhoe Attachment SOLD SOLD SOLD

$5,995.00

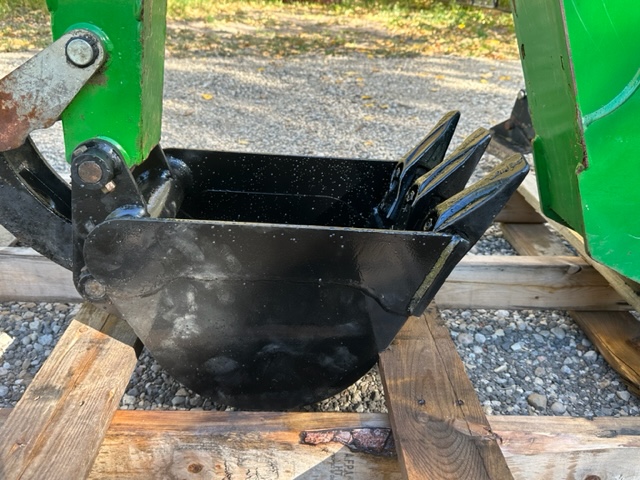

C/w 12” Digging Bucket

John Deere 260 backhoe attachment for John Deere compact tractor. Fits 2305,2210, 1023E and 1026R. Listing is for the attachment ONLY, you will need a mount kit and hydraulic kit to fit your particular tractor. The bucket is included.

$145.27/month OAC

Financing Available

Specifications

display on slider	No
Make	John Deere
Model	260 Backhoe Attachment

Additional Information

C/w 12” Digging Bucket

$5,995.00

Backhoe specs

Dimensions are given for backhoe with boom pivot pin 12-in. (30 cm) above ground.

A. Digging depth 2-ft. (610 mm) flat bottom	6-ft. 2-in. (1.9 m)
B. Swing arc	150 degrees
C. Loading height (bucket at 60 degrees)	5-ft. (1.5 m)
D. Reach from center line of swing pivot	8-ft. 8-in. (2.6 m)
E. Transport height (maximum)	6-ft. 6-in. (1.7 m)
F. Bucket rotation	180 degrees
G. Loading reach (bucket at 60 degrees)	2-ft. 9-in. (0.8 m)
H. Transport overhang	3-ft. 1-in. (0.9 m)
I. Undercut	1-ft. 5-in. (.4 m)
J. Hydraulic stabilizer spread, down (approx.)	6-ft. 2-in. (1.9 m)
K. Hydraulic stabilizer spread, up (approx.)	4-ft. 10-in. (1.5 m)
Boom lift ability (dipper arm and boom extended lifting with boom cylinder only, weight attached at bucket pivot, measured at 36-in.)	285 lb. (129 kg)
SAE dipperstick digging force	1187 lbf. (5280 N)
SAE bucket digging force	2036 lbf. (9056 N)
Backhoe weight with 16-in. bucket	610 lb. (277 kg)
Angle of departure	20 degrees

Bucket specs

Bucket	8-in. (203 mm)	12-in. (304 mm)	16-in. (406 mm)
SAE Struck Capacity	.42 cu. ft. (.011 cu. m)	.66 cu. ft. (.019 cu. m)	.9 cu ft (.025 cu. m)
Heaped Capacity	.46 cu. ft. (.013 cu. m)	.76 cu. ft. (.022 cu. m)	1.06 cu. ft. (.03 cu. m)
Shipping Weight	38 lb. (17 kg)	49 lb. (22 kg)	55 lb. (25 kg)
